Product description
The femtosecond laser micro-nano processing system is based on the research and development and industrialization of the key technology of femtosecond laser amplified by high-power fiber seeds-Ti:sapphire. It will be used in laser medical treatment (such as laser non-invasive beauty, "non-contact" tumor removal, soft tissue surgery, cardiovascular Brackets, etc.) and industrial processing (such as laser welding, laser cladding, laser engraving) and other industrial fields have a wide range of application values. Our femtosecond laser technology has high beam quality, high light conversion efficiency, and continuous maintenance-free in an industrial-grade environment The most important thing is to fill the gaps in the domestic laser industry. This technology is combined with our self-developed six-axis laser precision micromachining platform and integrated opto-electromechanical modules to form a femtosecond laser precision machining system with complete and flexible processing capabilities, thus promoting femtosecond laser technology in military industry, scientific research and Practical application in the industrial field. Please contact us for price.
1、System performance
· XYZ high-precision sample positioning
· Optical path and shaping system

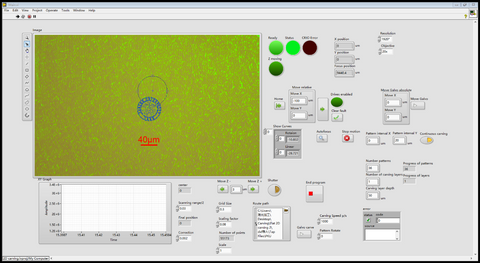

· Single software controls all devices
· Easy to expand and customized
· 1 year warranty
· Ultrafast laser users provide
· Warranty can be extended
2、Application field、
· Surface micro-nano structure
· Selective removal processing
· Microporous
· 3D laser direct writing
· Refractive index change
· Dicing or cutting
· Multiphoton polymerization (mPP)
3、Configuration unit composition and parameters
（1）．XYZ translation stage
| index | Value | unit |
| Total stroke XYZ | 50x50x25 | mm |
| positioning accuracy | ±1 | μm |
| Resolution | 0.05 | μm |
| Maximum speed | 20 | mm/s |
| Maximum horizontal load | 30 | kg |
| Repeatability | ±0,5 | μm |
| XYZ orthogonality | 5 | arc sec |
| Integrated sample holder | yes |
（2）. Focusing lens
| NA | 0.1or higher | |
| Focal length | 4or smaller | mm |
| Working distance | 18.5* | mm |
| Focus spot size | ≈3* | μm |
| * depends on objective selected and customers laser | ||
（3）.Machine vision (image acquisition and processing)
| Photosensitive chip size | 11.3mm x 7.1mm |
| Horizontal/vertical resolution | 1920px x 1200px |
| Resolution | 2.3MP |
| Frame rate | 42fps |
4、Processing products display

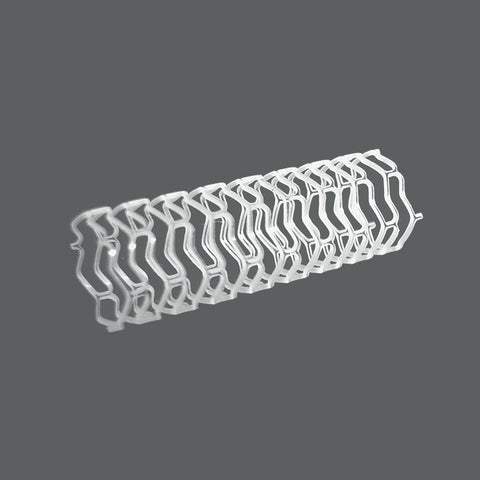

Degradable polylactate cardiovascular stent, diameter 3mm, filament diameter 100 microns

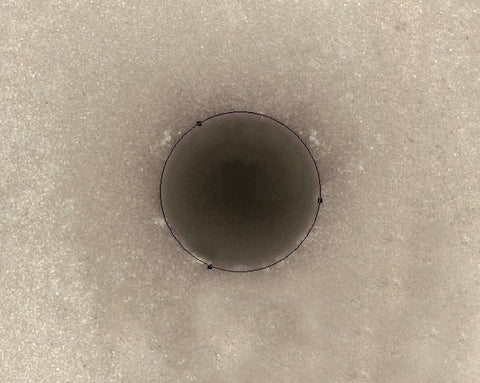

ZrO2 (Zirconium Oxide Ceramic) sheet with straight holes, diameter 150µm, depth 300µm
