Product description
The femtosecond laser micro-nano processing system is based on the research and development and industrialization of the key technology of femtosecond laser amplified by high-power fiber seeds-Ti:sapphire. It will be used in laser medical treatment (such as laser non-invasive beauty, "non-contact" tumor removal, soft tissue surgery, cardiovascular Brackets, etc.) and industrial processing (such as laser welding, laser cladding, laser engraving) and other industrial fields have a wide range of application values. Our femtosecond laser technology has high beam quality, high light conversion efficiency, and continuous maintenance-free in an industrial-grade environment The most important thing is to fill the gaps in the domestic laser industry. This technology is combined with our self-developed six-axis laser precision micromachining platform and integrated opto-electromechanical modules to form a femtosecond laser precision machining system with complete and flexible processing capabilities, thus promoting femtosecond laser technology in military industry, scientific research and Practical application in the industrial field.
1、System performance
· XYZ high-precision sample positioning

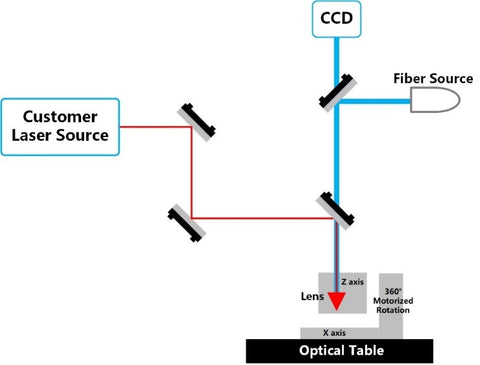

· Optical path and shaping system

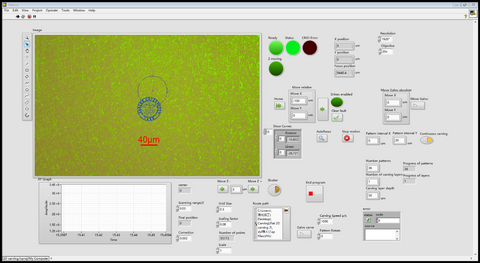

· Single software controls all devices
· Easy to expand and customized
· 1 year warranty
· Ultrafast laser users provide
· Warranty can be extended
2、Application field、
· Surface micro-nano structure
· Selective removal processing
· Microporous
· 3D laser direct writing
· Refractive index change
· Dicing or cutting
· Multiphoton polymerization (mPP)
3、Configuration unit composition and parameters
（1）．XYZ translation stage
| index | Value | unit |
| Total stroke XYZ | 50x50x25 | mm |
| positioning accuracy | ±1 | μm |
| Resolution | 0.05 | μm |
| Maximum speed | 20 | mm/s |
| Maximum horizontal load | 30 | kg |
| Repeatability | ±0,5 | μm |
| XYZ orthogonality | 5 | arc sec |
| Integrated sample holder | yes |
（2）. Focusing lens
| NA | 0.1or higher | |
| Focal length | 4or smaller | mm |
| Working distance | 18.5* | mm |
| Focus spot size | ≈3* | μm |
| * depends on objective selected and customers laser | ||
（3）.Machine vision (image acquisition and processing)
| Photosensitive chip size | 11.3mm x 7.1mm |
| Horizontal/vertical resolution | 1920px x 1200px |
| Resolution | 2.3MP |
| Frame rate | 42fps |
4、Processing products display

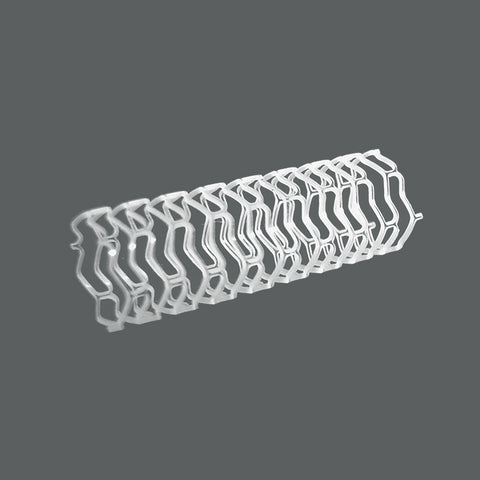

Degradable polylactate cardiovascular stent, diameter 3mm, filament diameter 100 microns

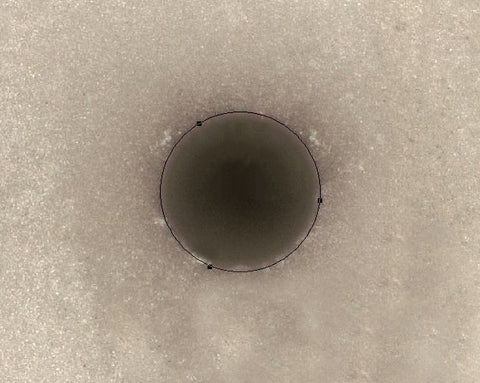

ZrO2 (Zirconium Oxide Ceramic) sheet with straight holes, diameter 150µm, depth 300µm
